JOS-1F Box Set

JOS-1F Box Set

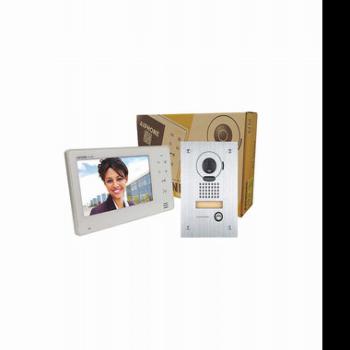

The Aiphone JOS-1V video door entry kit is an elegant, cost effective intercom video entry system consisting of the Aiphone JO-1MD Master station, JO-DVF flush mounted video door station and a power supply.

The JO-1MD master station features a 7" colour LCD screen with touch controls and integral microphone for hands free communication with the person at the door station. The communication button activates hands free speech with one light touch, or press and hold for PTT operation. A door release contact enables remote unlocking of the entrance door and there is also a further button to activate other external devices such as an exterior light or electric gate.

The JO-DVF is a flush mount stainless steel door station with integral colour camera, microphone, speaker and call button enabling 2 way hands free communication with the JO-1MD master station. A simple twin core bell type wire is all that is needed to connect the two together. Pushing the 'call' button causes the master station to ring and activates the LCD screen.

The JOS1V is a complete self contained kit, ready for installation, but a second internal station can be added to the system for communication from a different floor or room. Order the JO-1FD expansion station separately - see related products.

Watch the video for further information or download the Aiphone brochure from the downloads tab.

  • 7" Screen
  • Touch buttons for system control
  • Elegant styling
  • Slim design video master: 20mm depth
  • 2-conductor wiring
Power Source
18V DC - use PS-1820UL

Hands-free: Auto-voice actuation

PTT: Push-to-talk, release-to-listen

Video Monitor 7" colour LCD screen
Door Release Contact rating: 24V AC/DC, 500mA - use RY-18L for larger contact rating
Min. Illumination 5 lux at 1'6"

Door to master: 2 conductor, mid cap, solid, non-shielded

Wire Type Aiphone #871802
