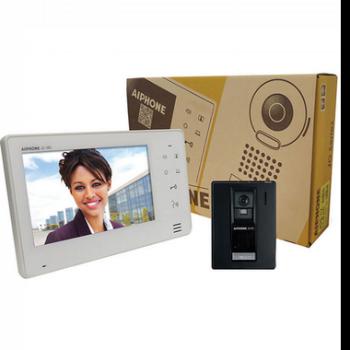

JO-1MDW Box Set


•  Video Display: 7" TFT touchscreen

• Communication: Hands-free (VOX) or push-to-talk (simplex)

• Door Release: N/O dry contact, 24V AC/DC, 1A (use RY-18L for a larger contact)

• Mounting: Surface mount directly to wall or desk mount using MCW-S/A

• Internal Call Recording: 10 calls max. @ 10 seconds/call

                                          First in, first out

                                          Save up to 5 calls(max.)

•  Memory Expansion: micro SDHC card: 4GB-32GB (Not Supplied by Aiphone)

• Call Recording with max memory: 1,000 calls(max.)(10 seconds/call)

                                                          First in, first out
                                                          Save up to 100 calls(max.)

• Wireless Frequency: 2.4 GHz

• Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)

                                Wireless N at 2.4 GHz provides the best results.

• Download Minimum Bandwidth: 1.3MBs

• Upload Minimum Bandwidth: 1.3MBs

• Communication style: Handsfree or PTT

                                      Mobile App

• Model: Intercom App Type B
• Max per system: 8 devices
• Available at: Apple App Store or Google Play

• Power Supply: 18V DC, Supplied from PS-1820UL

• Current Consumption: 450mA(max.) 80mA(standby.)

• IP Rating: IP54

• Wire Type: Door to Master Station: 2-cond., low cap, non-shielded - use Aiphone #871802 Master Station to Power Supply: 2-cond., low cap, non-shielded - use Aiphone #871802

• Distance: Door Station to farthest Master Station: 165' (22AWG) 330' (18AWG)
