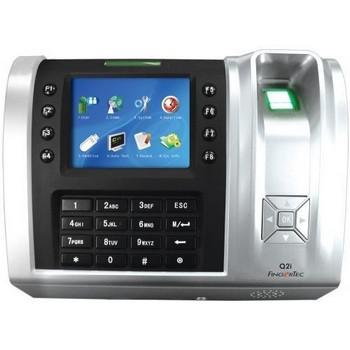

MODEL |
Q2i |
|
SURFACE FINISHING |
Acrylonitrile Butadiene Styrene (ABS) |
|
TYPE OF SCANNER |
Optical |
|
PRODUCT DIMENSION (L X W X H), mm |
200 x 56 x 160 |
|
STORAGE |
|
User Capacity |
12,000 |
|
Transaction |
200,000 |
|
ENROLLMENT & VERIFICATION |
|
Methods |
Fingerprint (1:1, 1:N), Password & Card |
|
Card per user ID |
2 |
|
Reading distance, mm |
Any angle |
|
Verification time (sec) |
< 1 |
|
FAR (%) |
< 0.0001 |
|
FRR |
< 1 |
|
CARD TECHNOLOGY |
|
RFID: 64-bit, 125kHz |
Yes |
|
MIFARE: MFIS50/S70, 13.56MHz |
Made to order |
|
HID: HID 1325, 26-bit, 125kHz |
Made to order |
|
COMMUNICATIONS |
|
Method |
TCP/IP, RS232, RS485, USB flash disk, (Optional: WiFi) |
|
Baud rates |
9600, 19200, 38400, 57600, 115200 |
|
Wiegand |
26-bit input/output |
|
OPERATING ENVIRONMENT |
|
Temperature (°C) |
0 ~ 45 |
|
Humidity (%) |
20 ~ 80 |
|
Power input |
DC12V 3A |
|
TIME ATTENDANCE |
|
Siren |
Built- in (Optional - External) |
|
Work codes |
Yes |
|
MULTIMEDIA |
|
Voice |
Yes |
|
Display |
3.5” 65k color TFT screen |
|
Short messaging |
Yes |
|
ACCESS CONTROL |
|
EM lock driving output |
DC12V 3A / Relay output |
|
Alarm output |
NO/NC |
|
Antipassback |
Yes |
