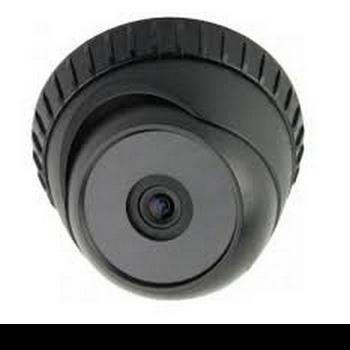

KPC133D
| Sensor | 1/3" Color CCD |
| Number of Pixels | 512(H) x 492(V) / 512(H) x 582(V) |
| Min. Illumination | 0.05 Lux / F2.0, 0Lux (IR ON) |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec. |
| Lens | f3.6mm / F2.0 |
| IRIS Mode | AES |
| IR LED | 21 units |
| IR Effective Distance | Up to 15 Meters |
| White Balance | ATW |
| IP Rating | N/A |
| Video Output | 1.0 Vp-p composite, 75Ω |
| Power Source (±10%) | DC12V |
| Current / Power consumption (±10%) | 70mA (IR OFF), 220mA (IR ON) |
| Dimensions (mm) | 94.1(Θ) x 70.7(H) |
