Keypad (EPDSW)

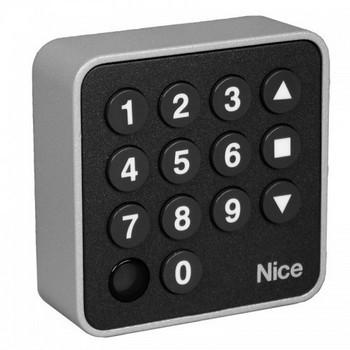

The Nice Era Wireless Keypad EDSW is made of vandal proof metal with a 27 millimetre depth. This product has an IP of 54. The keypad has 13 keys, with an 8 digit combination that can be input via radio connection, making this product 100% wireless.

The main features of this product include:

  • The ability to choose between whether to have 3 transmission channels to control 3 systems or 3 different customized commands for a single automated system.
  • No cables - 100% wireless.
  • Range of 25 metres in free space and 15 metres inside a building.
  • Backlit keypad
  • Automated turn off when not in use.
  • Vandal proof casing
  • Works in temperatures from -20 degrees celsius to 55 degrees celsius
  • 2 Year Battery Life (Figure based on 10 transmissions a day)



Power supply 6 Vdc with 2 lithium batteries type CR2430
Absorption -
Protection rating -
Dimensions  70x27x70 h (mm)
Weight 215 g
Frequency 433.92 MHz ± 100 KH
Battery life estimated 2 years with 10 transmissions per day
Radio coding rolling code 52 bit FloR
Estimated range  25 in open space, 15 indoors
