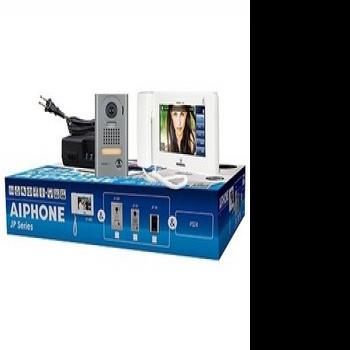

JPS-4AEDV
|
Power Source
|
24V DC – use PS‑2420UL |
| Communication |
Hands-free (VOX) or handset (full-duplex) |
| Video | Display 7" color LCD touchscreen |
| Picture Memory |
Internal / Built‑In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting |
| Camera |
Type: 1/4" color CMOS View Area: 100° vert. x 170° horiz. |
| Door Release |
N/O dry contact, 24V AC/DC, 500mA – use EL‑12S (use RY‑24L for larger contact rating and use RY‑3DL for 3~4 doors) |
| Wire Type |
Door Station to Master Station: 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802 Power Supply to Master Station: 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802 Master Station to Adaptor: CAT‑5e or CAT‑6 Adaptor to Sub Master Station: CAT‑5e or CAT‑6 |
| Distance |
Door Station to Master Station: 330' Master Station to Distribution Adaptor: 650' Distribution Adaptor to Sub Master Station: 165' Power Supply to Master Station: 16'(22AWG) 33'(18AWG) Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG) |
