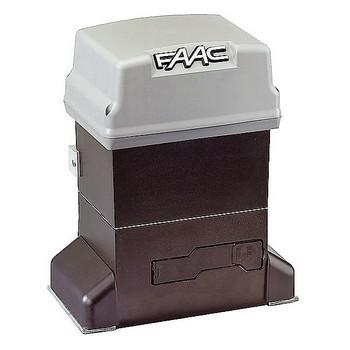

FAAC 746

The FAAC 746 ER is an automated gear motor system specifically made for sliding gates (residential or condominium) having a maximum weight of 600 kg.

The gear motor is designed for adjustable clasping on the side and the height. It is equipped with a magnetic travel limit and key-protected lever release device. It has a control board which is enclosed and secured by a housing which is intended for abridged programming through a display.


• Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device and encoder

• As the gear motor is non reversing, no electric locks need be installed

• Key protected lever release device

• Magnetic travel limit device, simplified installation of travel limit magnets

• Designed for height and side adjustable fastening

• Control board, protected by a housing, for simplified programming via display.
