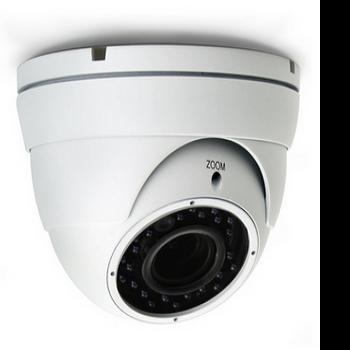

MODEL |
DG206A |
|
Pick-up Element |
1 / 2.7 "CMOS image sensor. |
|
Number of Pixels |
1930 (H) x 1088 (V). |
|
Video Frame Rate |
1080P @ 30fps / 1080P @ 25fps. |
|
Min. Illumination |
0.1 Lux / F1.4 (Wide) ~ F2.8 (Tele), 0 Lux (IR LED ON). |
|
S / N Ratio |
More than 48dB (AGC OFF). |
|
Shutter Speed |
1/30 (1/25) sec ~ 1/720000 (1/600000) sec. |
|
Lens |
f2.8 ~ 12mm / F1.4 ~ F2.8. |
|
Lens Angle |
Wide: 104 ° (Horizontal) / 56 ° (Vertical) / 124 ° (Diagonal) Tele: 35 ° (Horizontal) / 20 ° (Vertical) / 40 ° (Diagonal). |
|
IR LED |
24 units |
|
IR Effective Distance |
Up to 25 meters |
|
IR Shift |
YES |
|
Day & Night Mode |
YES |
|
IRIS Mode |
AES |
|
White Balance |
AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K. |
|
AGC |
Adjustable |
|
White Balance |
ATW |
|
AGC |
Adjustable |
|
Sharpness |
Adjustable |
|
Flickerless |
50HZ / 60HZ / OFF |
|
BLC |
Adjustable |
|
IP Rating |
IP66 |
|
Operating Temperature |
-20 ℃ ~ 40 ℃ |
|
Operating Humidity |
Less than 60% relative humidity |
|
Power Source (± 10%). |
DC12V / 1A |
|
Current Consumption (± 10%). |
300mA |
|
Dimensions (± 5mm) |
138 (Φ) x 100 (H). |
|
Net Weight (Kg) |
1 |
