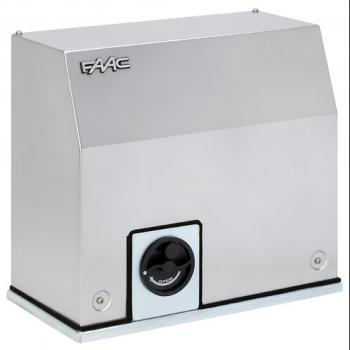

C850

KEY FEATURES:

Duty - Fast & Continous Service

Power Consumption - 170W

Max Gate Weight - 1800Kg

Max Speed - 40M/min

Max Length - 20M

*Support Backup Battery

TECHNICAL SPECIFICATION:

Power supply voltage	230 Vac (+6% -10%) 50 Hz
Absorbed power	1800 W
Type of motor	1.1 KW with oil lubrication
Pull and push	180 daN (Z28 module 4)
Drive torque	110 Nm
Max. recommended lenght of the gate (m)	20
Gate speed	20 ÷ 42 m/min
Max. inverter	1.5 KW
Adjust speed and engine control	by inverter
Limit switch	4 built-in mechanical
Protection class	IP 54
Operating ambient temperature	-20°C ÷ +55°C
Motor weight	49 kg
Dimensions (L x D x H) in mm	510 x 295 x 467
R.o.T.	CD continuous service
