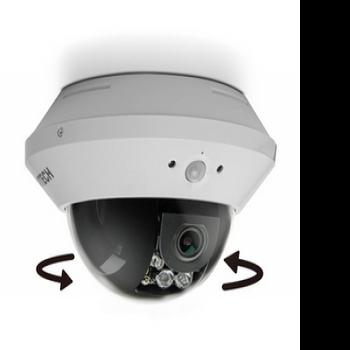

MODEL |
AVT1303 |
|
Pick-up Element |
1/ 2.7” CMOS image sensor |
|
Number of Pixels |
1930(H) x 1088(V) |
|
Video Frame Rate |
1080P@30fps / 1080P@25fps |
|
Min. Illumination |
1 Lux / F2.0 |
|
S/N Ratio |
More than 48dB (AGC OFF) |
|
Shutter Speed |
1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
|
Lens |
f2.8mm / F1.8 |
|
Lens Angle |
118° (Horizontal) / 65° (Vertical) / 136° (Diagonal) |
|
IR LED |
2 Units |
|
IR Effective Distance |
20 meters |
|
PIR Sensor |
Detection Range 76° wide angle with up to 5m long distance at 2.5m height (under 30℃) |
|
IR Shift |
YES |
|
Day & Night Mode |
YES |
|
IRIS Mode |
AES |
|
White Balance |
AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
|
AGC |
Adjustable |
|
Sharpness |
Adjustable |
|
Flickerless |
50HZ / 60HZ / OFF |
|
BLC |
Adjustable |
|
External alarm I/O |
YES (1 input / 1 output) |
|
Operating Temperature |
0℃ ~ 40℃ |
|
Operating Humidity |
Less than 60% relative humidity |
|
Power Source (±10%) |
DC12V / 1A |
|
Current consumption (±10%) |
421mA. |
