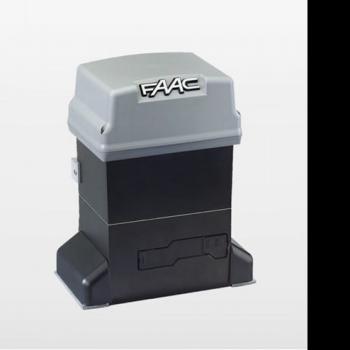

746 EZ Z16 - 230 V - Oil bathed

KEY FEATURES:
  • Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device and encoder
  • As the gearmotor is non reversing, no electric locks need to be installed.
  • Key protected lever release device
  • Magnetic limit switch device, simplified installation of limit switch magnets
  • Designed for height and side adjustable fastening
  • Control board, protected by a housing, for simplified programming via display
SPECIFICATION:

Duty - Residential / Light Commerical / Industrial

Power Consumption - 300W

Max Gate Weight - 600Kg

Max Speed - 9.6m/min
